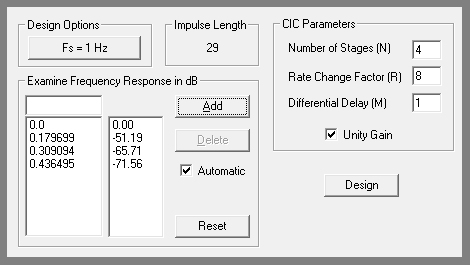

Specifications

Frequency Response

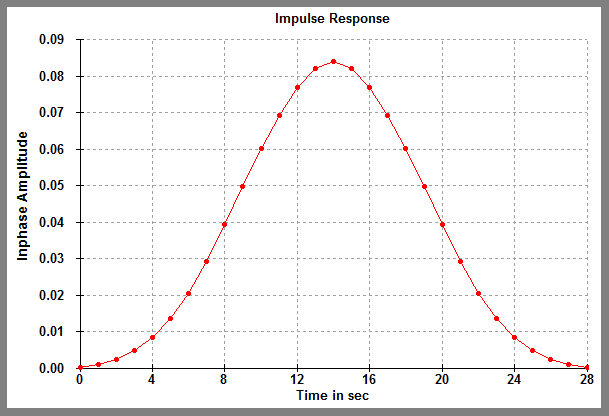

Impulse Response

Design Parameters

Fs = 1.000000 Hz
Number of taps = 29
Number of stages,   N = 4
Rate change factor, R = 8
Differential Delay, M = 1

Coefficients

  h[0] =  0.000244140625000000
  h[1] =  0.000976562500000000
  h[2] =  0.002441406250000000
  h[3] =  0.004882812500000000
  h[4] =  0.008544921875000000
  h[5] =  0.013671875000000000
  h[6] =  0.020507812500000000
  h[7] =  0.029296875000000000
  h[8] =  0.039306640625000000
  h[9] =  0.049804687500000000
  h[10] =  0.060058593750000000
  h[11] =  0.069335937500000000
  h[12] =  0.076904296875000000
  h[13] =  0.082031250000000000
  h[14] =  0.083984375000000000
  h[15] =  0.082031250000000000
  h[16] =  0.076904296875000000
  h[17] =  0.069335937500000000
  h[18] =  0.060058593750000000
  h[19] =  0.049804687500000000
  h[20] =  0.039306640625000000
  h[21] =  0.029296875000000000
  h[22] =  0.020507812500000000
  h[23] =  0.013671875000000000
  h[24] =  0.008544921875000000
  h[25] =  0.004882812500000000
  h[26] =  0.002441406250000000
  h[27] =  0.000976562500000000
  h[28] =  0.000244140625000000
