Specifications

Frequency Response

Impulse Response

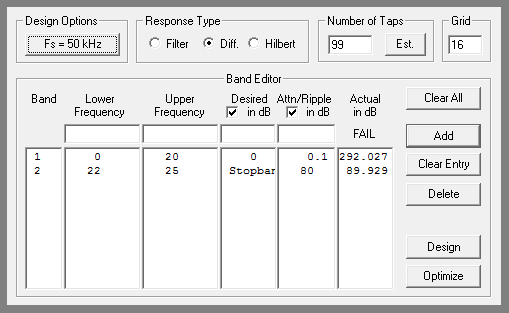

Design Parameters

Fs = 50.000000 kHz
Number of taps = 99
Grid Density = 16

Bands:
       Lower              Upper       Desired    Attn/Ripple
  -----------------------------------------------------------------
  0.0000000000 kHz  20.0000000000 kHz  Passband       0.100 dB
  22.0000000000 kHz  25.0000000000 kHz  Stopband      80.000 dB

Coefficients

  h[0] = -0.000079873624093246
  h[1] = -0.000034759998546841
  h[2] =  0.000207062864054499
  h[3] = -0.000145049722046331
  h[4] =  0.000050224059139905
  h[5] =  0.000072242566258539
  h[6] = -0.000204747233476829
  h[7] =  0.000307721612407842
  h[8] = -0.000333026229942293
  h[9] =  0.000244176334178969
  h[10] = -0.000035938627961658
  h[11] = -0.000253729332160396
  h[12] =  0.000545439269662226
  h[13] = -0.000736129933512643
  h[14] =  0.000729913095737147
  h[15] = -0.000473935829086868
  h[16] = -0.000012133700634302
  h[17] =  0.000624964258293899
  h[18] = -0.001192691275500361
  h[19] =  0.001516713342903899
  h[20] = -0.001431695707963092
  h[21] =  0.000867822456137414
  h[22] =  0.000105315879507588
  h[23] = -0.001270665134041983
  h[24] =  0.002302343628046029
  h[25] = -0.002845823728826550
  h[26] =  0.002624656166284230
  h[27] = -0.001543214963825016
  h[28] = -0.000247657052977536
  h[29] =  0.002346201128244776
  h[30] = -0.004173292769889985
  h[31] =  0.005113588610149005
  h[32] = -0.004692966524886030
  h[33] =  0.002747952938347331
  h[34] =  0.000463223155613113
  h[35] = -0.004250922615659618
  h[36] =  0.007605438900507259
  h[37] = -0.009418172668501352
  h[38] =  0.008770411486997833
  h[39] = -0.005224767269843949
  h[40] = -0.000953184805650421
  h[41] =  0.008703181500045617
  h[42] = -0.016237197559593686
  h[43] =  0.021245023403552075
  h[44] = -0.021151340606840513
  h[45] =  0.013223282552945692
  h[46] =  0.006008218461682358
  h[47] = -0.044311834804793802
  h[48] =  0.140256924294747200
  h[49] =  0.000000000000000000
  h[50] = -0.140256924294747200
  h[51] =  0.044311834804793802
  h[52] = -0.006008218461682358
  h[53] = -0.013223282552945692
  h[54] =  0.021151340606840513
  h[55] = -0.021245023403552075
  h[56] =  0.016237197559593686
  h[57] = -0.008703181500045617
  h[58] =  0.000953184805650421
  h[59] =  0.005224767269843949
  h[60] = -0.008770411486997833
  h[61] =  0.009418172668501352
  h[62] = -0.007605438900507259
  h[63] =  0.004250922615659618
  h[64] = -0.000463223155613113
  h[65] = -0.002747952938347331
  h[66] =  0.004692966524886030
  h[67] = -0.005113588610149005
  h[68] =  0.004173292769889985
  h[69] = -0.002346201128244776
  h[70] =  0.000247657052977536
  h[71] =  0.001543214963825016
  h[72] = -0.002624656166284230
  h[73] =  0.002845823728826550
  h[74] = -0.002302343628046029
  h[75] =  0.001270665134041983
  h[76] = -0.000105315879507588
  h[77] = -0.000867822456137414
  h[78] =  0.001431695707963092
  h[79] = -0.001516713342903899
  h[80] =  0.001192691275500361
  h[81] = -0.000624964258293899
  h[82] =  0.000012133700634302
  h[83] =  0.000473935829086868
  h[84] = -0.000729913095737147
  h[85] =  0.000736129933512643
  h[86] = -0.000545439269662226
  h[87] =  0.000253729332160396
  h[88] =  0.000035938627961658
  h[89] = -0.000244176334178969
  h[90] =  0.000333026229942293
  h[91] = -0.000307721612407842
  h[92] =  0.000204747233476829
  h[93] = -0.000072242566258539
  h[94] = -0.000050224059139905
  h[95] =  0.000145049722046331
  h[96] = -0.000207062864054499
  h[97] =  0.000034759998546841
  h[98] =  0.000079873624093246
