Specifications

Frequency Response

Impulse Response

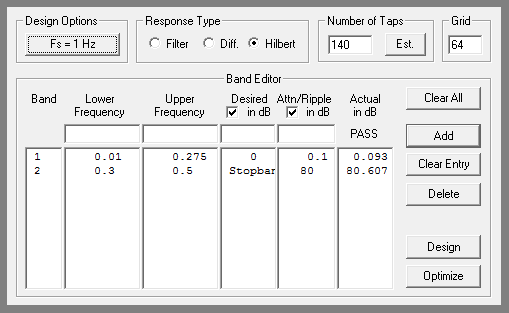

Design Parameters

Fs = 1.000000 Hz
Number of taps = 140
Grid Density = 64

Bands:
       Lower              Upper       Desired    Attn/Ripple
  -----------------------------------------------------------------
  0.0100000000 Hz   0.2750000000 Hz   Passband       0.100 dB
  0.3000000000 Hz   0.5000000000 Hz   Stopband      80.000 dB

Coefficients

  h[0] =  0.000147501820453801
  h[1] =  0.000207207311842810
  h[2] =  0.000545595632128396
  h[3] =  0.001515499787825553
  h[4] =  0.002003842726603642
  h[5] =  0.000869367557948402
  h[6] = -0.000165815251001555
  h[7] =  0.000793072428627800
  h[8] =  0.001735355850820599
  h[9] =  0.000775939856546712
  h[10] =  0.000413988875725928
  h[11] =  0.001834664745720072
  h[12] =  0.001847119322728207
  h[13] =  0.000452951339250055
  h[14] =  0.001335982406750570
  h[15] =  0.002875894032920823
  h[16] =  0.001461835698214758
  h[17] =  0.000600649916246983
  h[18] =  0.002983909849121599
  h[19] =  0.003292697148153584
  h[20] =  0.000743981944429054
  h[21] =  0.001916531505793725
  h[22] =  0.004776820922151912
  h[23] =  0.002570275355357074
  h[24] =  0.000702611738277334
  h[25] =  0.004577003870521734
  h[26] =  0.005495476998578303
  h[27] =  0.001147962396315927
  h[28] =  0.002612705030574536
  h[29] =  0.007528535495870875
  h[30] =  0.004239693874174028
  h[31] =  0.000751687988061078
  h[32] =  0.006774645132701929
  h[33] =  0.008735729102464895
  h[34] =  0.001731468421038440
  h[35] =  0.003482419072905030
  h[36] =  0.011492275104760585
  h[37] =  0.006732119277594317
  h[38] =  0.000741064723922047
  h[39] =  0.009875885747849755
  h[40] =  0.013546773986597649
  h[41] =  0.002610938147350139
  h[42] =  0.004643134272934613
  h[43] =  0.017389387117216271
  h[44] =  0.010574124738046975
  h[45] =  0.000666007791198520
  h[46] =  0.014533222013526914
  h[47] =  0.021096568382497960
  h[48] =  0.004053072734639951
  h[49] =  0.006390203517349535
  h[50] =  0.026967171777242172
  h[51] =  0.017075615450739656
  h[52] =  0.000528913073720938
  h[53] =  0.022525016824485267
  h[54] =  0.034664493508995475
  h[55] =  0.006840073482099474
  h[56] =  0.009655388197133963
  h[57] =  0.045929727392895137
  h[58] =  0.030753326144912663
  h[59] =  0.000340241606175962
  h[60] =  0.040942782664229238
  h[61] =  0.068432485477639915
  h[62] =  0.014674798550653012
  h[63] =  0.019420824465835373
  h[64] =  0.109260348087141690
  h[65] =  0.084375168907203868
  h[66] =  0.000117396010743231
  h[67] =  0.156705940049933550
  h[68] =  0.402381647791040020
  h[69] =  0.238535771778533020
  h[70] = -0.238535771778533020
  h[71] = -0.402381647791040020
  h[72] = -0.156705940049933550
  h[73] = -0.000117396010743231
  h[74] = -0.084375168907203868
  h[75] = -0.109260348087141690
  h[76] = -0.019420824465835373
  h[77] = -0.014674798550653012
  h[78] = -0.068432485477639915
  h[79] = -0.040942782664229238
  h[80] = -0.000340241606175962
  h[81] = -0.030753326144912663
  h[82] = -0.045929727392895137
  h[83] = -0.009655388197133963
  h[84] = -0.006840073482099474
  h[85] = -0.034664493508995475
  h[86] = -0.022525016824485267
  h[87] = -0.000528913073720938
  h[88] = -0.017075615450739656
  h[89] = -0.026967171777242172
  h[90] = -0.006390203517349535
  h[91] = -0.004053072734639951
  h[92] = -0.021096568382497960
  h[93] = -0.014533222013526914
  h[94] = -0.000666007791198520
  h[95] = -0.010574124738046975
  h[96] = -0.017389387117216271
  h[97] = -0.004643134272934613
  h[98] = -0.002610938147350139
  h[99] = -0.013546773986597649
  h[100] = -0.009875885747849755
  h[101] = -0.000741064723922047
  h[102] = -0.006732119277594317
  h[103] = -0.011492275104760585
  h[104] = -0.003482419072905030
  h[105] = -0.001731468421038440
  h[106] = -0.008735729102464895
  h[107] = -0.006774645132701929
  h[108] = -0.000751687988061078
  h[109] = -0.004239693874174028
  h[110] = -0.007528535495870875
  h[111] = -0.002612705030574536
  h[112] = -0.001147962396315927
  h[113] = -0.005495476998578303
  h[114] = -0.004577003870521734
  h[115] = -0.000702611738277334
  h[116] = -0.002570275355357074
  h[117] = -0.004776820922151912
  h[118] = -0.001916531505793725
  h[119] = -0.000743981944429054
  h[120] = -0.003292697148153584
  h[121] = -0.002983909849121599
  h[122] = -0.000600649916246983
  h[123] = -0.001461835698214758
  h[124] = -0.002875894032920823
  h[125] = -0.001335982406750570
  h[126] = -0.000452951339250055
  h[127] = -0.001847119322728207
  h[128] = -0.001834664745720072
  h[129] = -0.000413988875725928
  h[130] = -0.000775939856546712
  h[131] = -0.001735355850820599
  h[132] = -0.000793072428627800
  h[133] =  0.000165815251001555
  h[134] = -0.000869367557948402
  h[135] = -0.002003842726603642
  h[136] = -0.001515499787825553
  h[137] = -0.000545595632128396
  h[138] = -0.000207207311842810
  h[139] = -0.000147501820453801
