Specifications

Frequency Response

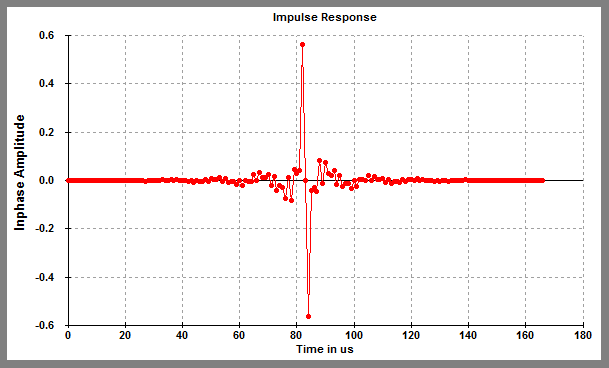

Impulse Response

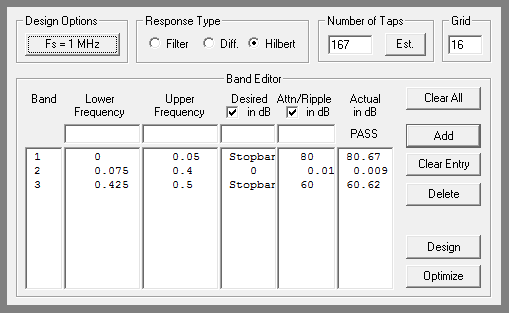

Design Parameters

Fs = 1.000000 MHz
Number of taps = 167
Grid Density = 16

Bands:
       Lower              Upper       Desired    Attn/Ripple
  -----------------------------------------------------------------
  0.0000000000 MHz  0.0500000000 MHz  Stopband      80.000 dB
  0.0750000000 MHz  0.4000000000 MHz  Passband       0.010 dB
  0.4250000000 MHz  0.5000000000 MHz  Stopband      60.000 dB

Coefficients

  h[0] = -0.000312249856659690
  h[1] =  0.000137550845272533
  h[2] = -0.000019717570753789
  h[3] =  0.000131512635050993
  h[4] =  0.000175616680551831
  h[5] =  0.000095399059783878
  h[6] =  0.000258644165047827
  h[7] =  0.000088853074500059
  h[8] =  0.000049274653403498
  h[9] =  0.000067369385704304
  h[10] = -0.000312914040955388
  h[11] = -0.000113045687561935
  h[12] = -0.000458387628849092
  h[13] = -0.000438408112278357
  h[14] = -0.000193381585795989
  h[15] = -0.000557437065704836
  h[16] =  0.000240966259770120
  h[17] = -0.000067835083733772
  h[18] =  0.000436568026814782
  h[19] =  0.000877474973132280
  h[20] =  0.000317283080327099
  h[21] =  0.001402281886088973
  h[22] =  0.000195925071611131
  h[23] =  0.000666283838313587
  h[24] =  0.000233743701572154
  h[25] = -0.001048844579181377
  h[26] =  0.000041147121151209
  h[27] = -0.002242753215295803
  h[28] = -0.000813793298758348
  h[29] = -0.001566979344645200
  h[30] = -0.001818756690955277
  h[31] =  0.000612056930555662
  h[32] = -0.001503866113161226
  h[33] =  0.002329671731590797
  h[34] =  0.000945673011222626
  h[35] =  0.002014843521636897
  h[36] =  0.003977946753192511
  h[37] =  0.000239164275574424
  h[38] =  0.004316566830608708
  h[39] = -0.000973662474555674
  h[40] =  0.000249961467871848
  h[41] = -0.000696394643401044
  h[42] = -0.005593607344037693
  h[43] = -0.000351833188761867
  h[44] = -0.007691452168625323
  h[45] = -0.001666423098521790
  h[46] = -0.002948046230620532
  h[47] = -0.003522625989318906
  h[48] =  0.005309303053364992
  h[49] = -0.002179131915401489
  h[50] =  0.009635845422008398
  h[51] =  0.004031764606385907
  h[52] =  0.005732936907117034
  h[53] =  0.010501661318949501
  h[54] = -0.002754531042351504
  h[55] =  0.008964334783882144
  h[56] = -0.007718441261328190
  h[57] = -0.003502506953353305
  h[58] = -0.005303204457075426
  h[59] = -0.018146851060204295
  h[60] = -0.000135843849770716
  h[61] = -0.019907732987686253
  h[62] =  0.000594414425301767
  h[63] = -0.002223696433800087
  h[64] = -0.002919736567521110
  h[65] =  0.022917566884408852
  h[66] = -0.001674565912980887
  h[67] =  0.032433483796601825
  h[68] =  0.010633605920988111
  h[69] =  0.013405797423563230
  h[70] =  0.024590075860144403
  h[71] = -0.021559384129036938
  h[72] =  0.017882883159417037
  h[73] = -0.042176359668008090
  h[74] = -0.022309179416567081
  h[75] = -0.027391214101929635
  h[76] = -0.075243731762064323
  h[77] =  0.013137275838788008
  h[78] = -0.084222958556119804
  h[79] =  0.045036465091168945
  h[80] =  0.029767077969315284
  h[81] =  0.039448747833517511
  h[82] =  0.564167702147130750
  h[83] =  0.000000000000000000
  h[84] = -0.564167702147130750
  h[85] = -0.039448747833517511
  h[86] = -0.029767077969315284
  h[87] = -0.045036465091168945
  h[88] =  0.084222958556119804
  h[89] = -0.013137275838788008
  h[90] =  0.075243731762064323
  h[91] =  0.027391214101929635
  h[92] =  0.022309179416567081
  h[93] =  0.042176359668008090
  h[94] = -0.017882883159417037
  h[95] =  0.021559384129036938
  h[96] = -0.024590075860144403
  h[97] = -0.013405797423563230
  h[98] = -0.010633605920988111
  h[99] = -0.032433483796601825
  h[100] =  0.001674565912980887
  h[101] = -0.022917566884408852
  h[102] =  0.002919736567521110
  h[103] =  0.002223696433800087
  h[104] = -0.000594414425301767
  h[105] =  0.019907732987686253
  h[106] =  0.000135843849770716
  h[107] =  0.018146851060204295
  h[108] =  0.005303204457075426
  h[109] =  0.003502506953353305
  h[110] =  0.007718441261328190
  h[111] = -0.008964334783882144
  h[112] =  0.002754531042351504
  h[113] = -0.010501661318949501
  h[114] = -0.005732936907117034
  h[115] = -0.004031764606385907
  h[116] = -0.009635845422008398
  h[117] =  0.002179131915401489
  h[118] = -0.005309303053364992
  h[119] =  0.003522625989318906
  h[120] =  0.002948046230620532
  h[121] =  0.001666423098521790
  h[122] =  0.007691452168625323
  h[123] =  0.000351833188761867
  h[124] =  0.005593607344037693
  h[125] =  0.000696394643401044
  h[126] = -0.000249961467871848
  h[127] =  0.000973662474555674
  h[128] = -0.004316566830608708
  h[129] = -0.000239164275574424
  h[130] = -0.003977946753192511
  h[131] = -0.002014843521636897
  h[132] = -0.000945673011222626
  h[133] = -0.002329671731590797
  h[134] =  0.001503866113161226
  h[135] = -0.000612056930555662
  h[136] =  0.001818756690955277
  h[137] =  0.001566979344645200
  h[138] =  0.000813793298758348
  h[139] =  0.002242753215295803
  h[140] = -0.000041147121151209
  h[141] =  0.001048844579181377
  h[142] = -0.000233743701572154
  h[143] = -0.000666283838313587
  h[144] = -0.000195925071611131
  h[145] = -0.001402281886088973
  h[146] = -0.000317283080327099
  h[147] = -0.000877474973132280
  h[148] = -0.000436568026814782
  h[149] =  0.000067835083733772
  h[150] = -0.000240966259770120
  h[151] =  0.000557437065704836
  h[152] =  0.000193381585795989
  h[153] =  0.000438408112278357
  h[154] =  0.000458387628849092
  h[155] =  0.000113045687561935
  h[156] =  0.000312914040955388
  h[157] = -0.000067369385704304
  h[158] = -0.000049274653403498
  h[159] = -0.000088853074500059
  h[160] = -0.000258644165047827
  h[161] = -0.000095399059783878
  h[162] = -0.000175616680551831
  h[163] = -0.000131512635050993
  h[164] =  0.000019717570753789
  h[165] = -0.000137550845272533
  h[166] =  0.000312249856659690
