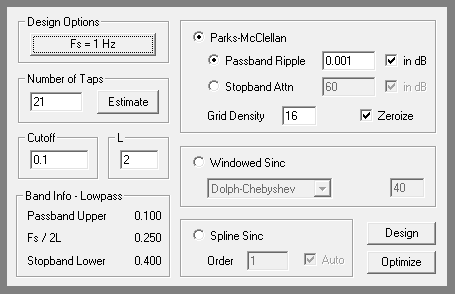

Specifications

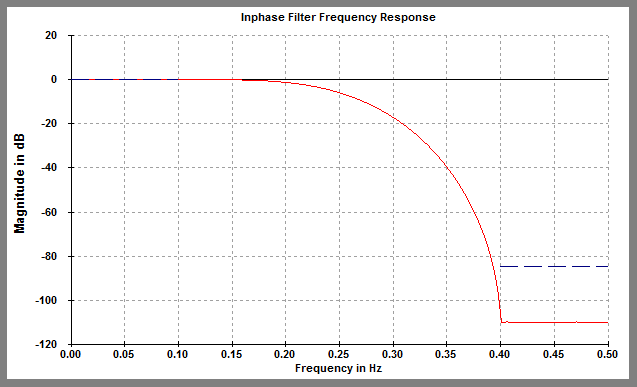

Frequency Response

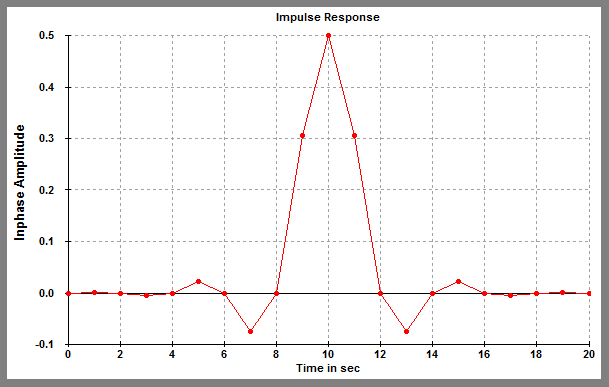

Impulse Response

Design Parameters

Fs = 1.000000 Hz
Number of taps = 21

Coefficients

  h[0] =  0.000000000000000000
  h[1] =  0.000661448732268403
  h[2] =  0.000000000000000000
  h[3] = -0.005278473618229915
  h[4] =  0.000000000000000000
  h[5] =  0.022639330210499908
  h[6] =  0.000000000000000000
  h[7] = -0.074055222510166552
  h[8] =  0.000000000000000000
  h[9] =  0.306034528985659300
  h[10] =  0.500000000000000000
  h[11] =  0.306034528985659300
  h[12] =  0.000000000000000000
  h[13] = -0.074055222510166552
  h[14] =  0.000000000000000000
  h[15] =  0.022639330210499908
  h[16] =  0.000000000000000000
  h[17] = -0.005278473618229915
  h[18] =  0.000000000000000000
  h[19] =  0.000661448732268403
  h[20] =  0.000000000000000000
