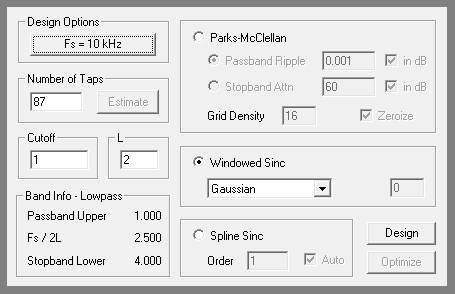

Specifications

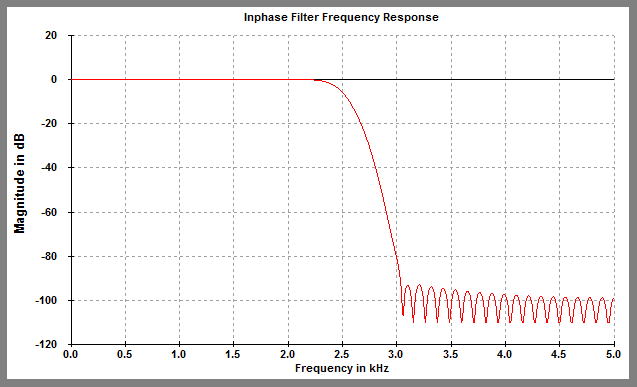

Frequency Response

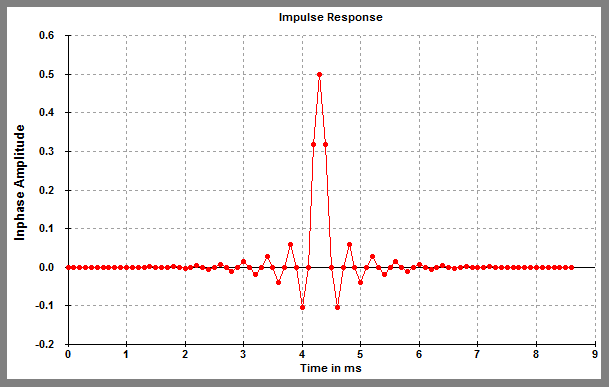

Impulse Response

Design Parameters

Fs = 10.000000 kHz
Number of taps = 87

Coefficients

  h[0] = -0.000016193207836053
  h[1] =  0.000000000000000000
  h[2] =  0.000029628506939860
  h[3] =  0.000000000000000000
  h[4] = -0.000052919062079654
  h[5] =  0.000000000000000000
  h[6] =  0.000092288797438885
  h[7] =  0.000000000000000000
  h[8] = -0.000157198166523780
  h[9] =  0.000000000000000000
  h[10] =  0.000261611743035190
  h[11] =  0.000000000000000000
  h[12] = -0.000425555274682958
  h[13] =  0.000000000000000000
  h[14] =  0.000676950658755074
  h[15] =  0.000000000000000000
  h[16] = -0.001053705954401813
  h[17] =  0.000000000000000000
  h[18] =  0.001606061675448530
  h[19] =  0.000000000000000000
  h[20] = -0.002399298401388765
  h[21] =  0.000000000000000000
  h[22] =  0.003517171318361260
  h[23] =  0.000000000000000000
  h[24] = -0.005066998522292811
  h[25] =  0.000000000000000000
  h[26] =  0.007188493130196890
  h[27] =  0.000000000000000000
  h[28] = -0.010070911350381571
  h[29] =  0.000000000000000000
  h[30] =  0.013988810031433223
  h[31] =  0.000000000000000000
  h[32] = -0.019381454954727574
  h[33] =  0.000000000000000000
  h[34] =  0.027044710216902194
  h[35] =  0.000000000000000000
  h[36] = -0.038660140332759274
  h[37] =  0.000000000000000000
  h[38] =  0.058602876010969175
  h[39] =  0.000000000000000000
  h[40] = -0.102987850022878270
  h[41] =  0.000000000000000000
  h[42] =  0.317260791014522870
  h[43] =  0.500005664291898630
  h[44] =  0.317260791014522870
  h[45] =  0.000000000000000000
  h[46] = -0.102987850022878270
  h[47] =  0.000000000000000000
  h[48] =  0.058602876010969175
  h[49] =  0.000000000000000000
  h[50] = -0.038660140332759274
  h[51] =  0.000000000000000000
  h[52] =  0.027044710216902194
  h[53] =  0.000000000000000000
  h[54] = -0.019381454954727574
  h[55] =  0.000000000000000000
  h[56] =  0.013988810031433223
  h[57] =  0.000000000000000000
  h[58] = -0.010070911350381571
  h[59] =  0.000000000000000000
  h[60] =  0.007188493130196890
  h[61] =  0.000000000000000000
  h[62] = -0.005066998522292811
  h[63] =  0.000000000000000000
  h[64] =  0.003517171318361260
  h[65] =  0.000000000000000000
  h[66] = -0.002399298401388765
  h[67] =  0.000000000000000000
  h[68] =  0.001606061675448530
  h[69] =  0.000000000000000000
  h[70] = -0.001053705954401813
  h[71] =  0.000000000000000000
  h[72] =  0.000676950658755074
  h[73] =  0.000000000000000000
  h[74] = -0.000425555274682958
  h[75] =  0.000000000000000000
  h[76] =  0.000261611743035190
  h[77] =  0.000000000000000000
  h[78] = -0.000157198166523780
  h[79] =  0.000000000000000000
  h[80] =  0.000092288797438885
  h[81] =  0.000000000000000000
  h[82] = -0.000052919062079654
  h[83] =  0.000000000000000000
  h[84] =  0.000029628506939860
  h[85] =  0.000000000000000000
  h[86] = -0.000016193207836053
