Specifications

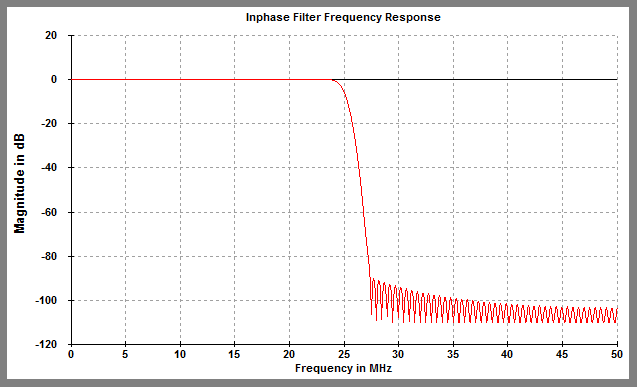

Frequency Response

Impulse Response

Design Parameters

Fs = 100.000000 MHz
Number of taps = 197

Coefficients

  h[0] =  0.000000000000000000
  h[1] =  0.000007850701329977
  h[2] =  0.000000000000000000
  h[3] = -0.000010267635986450
  h[4] =  0.000000000000000000
  h[5] =  0.000013364117875274
  h[6] =  0.000000000000000000
  h[7] = -0.000017311281260850
  h[8] =  0.000000000000000000
  h[9] =  0.000022317675271121
  h[10] =  0.000000000000000000
  h[11] = -0.000028635964203475
  h[12] =  0.000000000000000000
  h[13] =  0.000036570480816103
  h[14] =  0.000000000000000000
  h[15] = -0.000046485668794220
  h[16] =  0.000000000000000000
  h[17] =  0.000058815438095509
  h[18] =  0.000000000000000000
  h[19] = -0.000074073442595821
  h[20] =  0.000000000000000000
  h[21] =  0.000092864274170757
  h[22] =  0.000000000000000000
  h[23] = -0.000115895552268591
  h[24] =  0.000000000000000000
  h[25] =  0.000143990874859100
  h[26] =  0.000000000000000000
  h[27] = -0.000178103587676392
  h[28] =  0.000000000000000000
  h[29] =  0.000219331326907146
  h[30] =  0.000000000000000000
  h[31] = -0.000268931299735781
  h[32] =  0.000000000000000000
  h[33] =  0.000328336292271330
  h[34] =  0.000000000000000000
  h[35] = -0.000399171441399939
  h[36] =  0.000000000000000000
  h[37] =  0.000483271883635082
  h[38] =  0.000000000000000000
  h[39] = -0.000582701509703811
  h[40] =  0.000000000000000000
  h[41] =  0.000699773220786254
  h[42] =  0.000000000000000000
  h[43] = -0.000837071317235678
  h[44] =  0.000000000000000000
  h[45] =  0.000997476975005344
  h[46] =  0.000000000000000000
  h[47] = -0.001184198208822462
  h[48] =  0.000000000000000000
  h[49] =  0.001400806326593567
  h[50] =  0.000000000000000000
  h[51] = -0.001651281707581661
  h[52] =  0.000000000000000000
  h[53] =  0.001940072877665630
  h[54] =  0.000000000000000000
  h[55] = -0.002272174444365931
  h[56] =  0.000000000000000000
  h[57] =  0.002653231701362281
  h[58] =  0.000000000000000000
  h[59] = -0.003089682944801629
  h[60] =  0.000000000000000000
  h[61] =  0.003588955286272864
  h[62] =  0.000000000000000000
  h[63] = -0.004159736856502947
  h[64] =  0.000000000000000000
  h[65] =  0.004812359200578066
  h[66] =  0.000000000000000000
  h[67] = -0.005559340820458574
  h[68] =  0.000000000000000000
  h[69] =  0.006416170538328674
  h[70] =  0.000000000000000000
  h[71] = -0.007402455470526557
  h[72] =  0.000000000000000000
  h[73] =  0.008543637653074978
  h[74] =  0.000000000000000000
  h[75] = -0.009873624584413014
  h[76] =  0.000000000000000000
  h[77] =  0.011438941203626950
  h[78] =  0.000000000000000000
  h[79] = -0.013305521541423239
  h[80] =  0.000000000000000000
  h[81] =  0.015570309826652872
  h[82] =  0.000000000000000000
  h[83] = -0.018382154358720541
  h[84] =  0.000000000000000000
  h[85] =  0.021981994533845951
  h[86] =  0.000000000000000000
  h[87] = -0.026786886736988532
  h[88] =  0.000000000000000000
  h[89] =  0.033586051207694305
  h[90] =  0.000000000000000000
  h[91] = -0.044072966856873154
  h[92] =  0.000000000000000000
  h[93] =  0.062654428269977747
  h[94] =  0.000000000000000000
  h[95] = -0.105495691355106290
  h[96] =  0.000000000000000000
  h[97] =  0.318106870282130080
  h[98] =  0.500000062291693030
  h[99] =  0.318106870282130080
  h[100] =  0.000000000000000000
  h[101] = -0.105495691355106290
  h[102] =  0.000000000000000000
  h[103] =  0.062654428269977747
  h[104] =  0.000000000000000000
  h[105] = -0.044072966856873154
  h[106] =  0.000000000000000000
  h[107] =  0.033586051207694305
  h[108] =  0.000000000000000000
  h[109] = -0.026786886736988532
  h[110] =  0.000000000000000000
  h[111] =  0.021981994533845951
  h[112] =  0.000000000000000000
  h[113] = -0.018382154358720541
  h[114] =  0.000000000000000000
  h[115] =  0.015570309826652872
  h[116] =  0.000000000000000000
  h[117] = -0.013305521541423239
  h[118] =  0.000000000000000000
  h[119] =  0.011438941203626950
  h[120] =  0.000000000000000000
  h[121] = -0.009873624584413014
  h[122] =  0.000000000000000000
  h[123] =  0.008543637653074978
  h[124] =  0.000000000000000000
  h[125] = -0.007402455470526557
  h[126] =  0.000000000000000000
  h[127] =  0.006416170538328674
  h[128] =  0.000000000000000000
  h[129] = -0.005559340820458574
  h[130] =  0.000000000000000000
  h[131] =  0.004812359200578066
  h[132] =  0.000000000000000000
  h[133] = -0.004159736856502947
  h[134] =  0.000000000000000000
  h[135] =  0.003588955286272864
  h[136] =  0.000000000000000000
  h[137] = -0.003089682944801629
  h[138] =  0.000000000000000000
  h[139] =  0.002653231701362281
  h[140] =  0.000000000000000000
  h[141] = -0.002272174444365931
  h[142] =  0.000000000000000000
  h[143] =  0.001940072877665630
  h[144] =  0.000000000000000000
  h[145] = -0.001651281707581661
  h[146] =  0.000000000000000000
  h[147] =  0.001400806326593567
  h[148] =  0.000000000000000000
  h[149] = -0.001184198208822462
  h[150] =  0.000000000000000000
  h[151] =  0.000997476975005344
  h[152] =  0.000000000000000000
  h[153] = -0.000837071317235678
  h[154] =  0.000000000000000000
  h[155] =  0.000699773220786254
  h[156] =  0.000000000000000000
  h[157] = -0.000582701509703811
  h[158] =  0.000000000000000000
  h[159] =  0.000483271883635082
  h[160] =  0.000000000000000000
  h[161] = -0.000399171441399939
  h[162] =  0.000000000000000000
  h[163] =  0.000328336292271330
  h[164] =  0.000000000000000000
  h[165] = -0.000268931299735781
  h[166] =  0.000000000000000000
  h[167] =  0.000219331326907146
  h[168] =  0.000000000000000000
  h[169] = -0.000178103587676392
  h[170] =  0.000000000000000000
  h[171] =  0.000143990874859100
  h[172] =  0.000000000000000000
  h[173] = -0.000115895552268591
  h[174] =  0.000000000000000000
  h[175] =  0.000092864274170757
  h[176] =  0.000000000000000000
  h[177] = -0.000074073442595821
  h[178] =  0.000000000000000000
  h[179] =  0.000058815438095509
  h[180] =  0.000000000000000000
  h[181] = -0.000046485668794220
  h[182] =  0.000000000000000000
  h[183] =  0.000036570480816103
  h[184] =  0.000000000000000000
  h[185] = -0.000028635964203475
  h[186] =  0.000000000000000000
  h[187] =  0.000022317675271121
  h[188] =  0.000000000000000000
  h[189] = -0.000017311281260850
  h[190] =  0.000000000000000000
  h[191] =  0.000013364117875274
  h[192] =  0.000000000000000000
  h[193] = -0.000010267635986450
  h[194] =  0.000000000000000000
  h[195] =  0.000007850701329977
  h[196] =  0.000000000000000000
