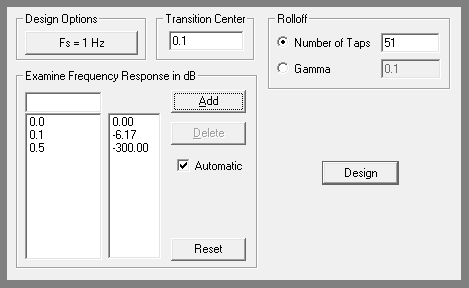

Specifications

Frequency Response

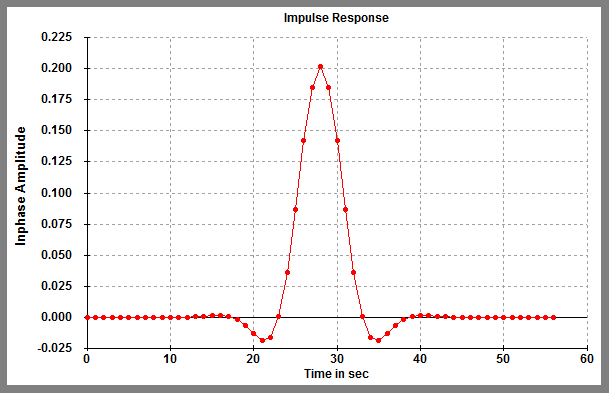

Impulse Response

Design Parameters

Fs = 1.000000 Hz
Number of taps = 57
Beta = 0.100000

Coefficients

  h[0] =  0.000000000000004862
  h[1] =  0.000000000000232369
  h[2] =  0.000000000005403173
  h[3] =  0.000000000081561748
  h[4] =  0.000000000898020390
  h[5] =  0.000000007681262609
  h[6] =  0.000000053076109005
  h[7] =  0.000000304101369107
  h[8] =  0.000001471113766488
  h[9] =  0.000006084820797337
  h[10] =  0.000021699245339020
  h[11] =  0.000067022621223064
  h[12] =  0.000179399555498672
  h[13] =  0.000414183423648251
  h[14] =  0.000813720792072776
  h[15] =  0.001317373753034742
  h[16] =  0.001611050409249973
  h[17] =  0.001000746607157598
  h[18] = -0.001482924517879113
  h[19] = -0.006499798670731059
  h[20] = -0.013296283330553738
  h[21] = -0.018561900056396893
  h[22] = -0.016269713780002439
  h[23] =  0.000497604439448375
  h[24] =  0.035765319085350279
  h[25] =  0.086649519722606275
  h[26] =  0.141916786130669800
  h[27] =  0.185108851474786700
  h[28] =  0.201478842633902030
  h[29] =  0.185108851474786700
  h[30] =  0.141916786130669800
  h[31] =  0.086649519722606275
  h[32] =  0.035765319085350279
  h[33] =  0.000497604439448375
  h[34] = -0.016269713780002439
  h[35] = -0.018561900056396893
  h[36] = -0.013296283330553738
  h[37] = -0.006499798670731059
  h[38] = -0.001482924517879113
  h[39] =  0.001000746607157598
  h[40] =  0.001611050409249973
  h[41] =  0.001317373753034742
  h[42] =  0.000813720792072776
  h[43] =  0.000414183423648251
  h[44] =  0.000179399555498672
  h[45] =  0.000067022621223064
  h[46] =  0.000021699245339020
  h[47] =  0.000006084820797337
  h[48] =  0.000001471113766488
  h[49] =  0.000000304101369107
  h[50] =  0.000000053076109005
  h[51] =  0.000000007681262609
  h[52] =  0.000000000898020390
  h[53] =  0.000000000081561748
  h[54] =  0.000000000005403173
  h[55] =  0.000000000000232369
  h[56] =  0.000000000000004862
