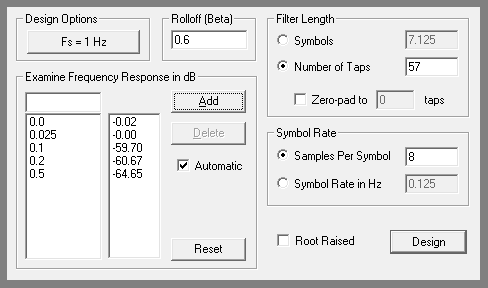

Specifications

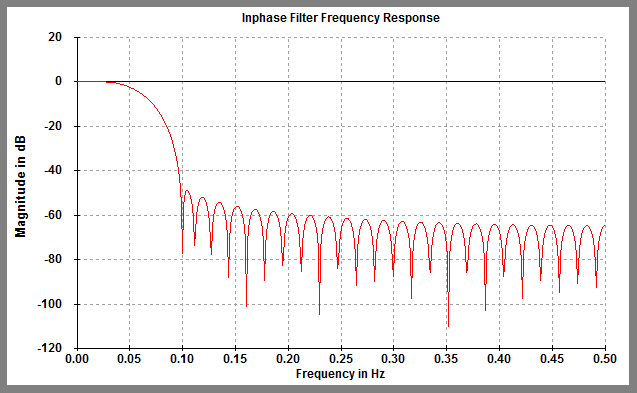

Frequency Response

Impulse Response

Design Parameters

Fs = 1.000000 Hz
Number of taps = 57

Coefficients

  h[0] =  0.000649748221703861
  h[1] =  0.000704968381467267
  h[2] =  0.000601710556160302
  h[3] =  0.000344618685610375
  h[4] = -0.000000000000000000
  h[5] = -0.000315486131333351
  h[6] = -0.000469637666945299
  h[7] = -0.000366391065912952
  h[8] =  0.000000000000000000
  h[9] =  0.000507299772757014
  h[10] =  0.000902523967266898
  h[11] =  0.000845717332526101
  h[12] = -0.000000000000000001
  h[13] = -0.001846802699809452
  h[14] = -0.004656639758671657
  h[15] = -0.008047030491452372
  h[16] = -0.011262302509533587
  h[17] = -0.013233640850709147
  h[18] = -0.012732395447351625
  h[19] = -0.008597980852561133
  h[20] =  0.000000000000000003
  h[21] =  0.013320213346932732
  h[22] =  0.030886074843207982
  h[23] =  0.051446646637548922
  h[24] =  0.073085100295987429
  h[25] =  0.093467158987853752
  h[26] =  0.110190619715552020
  h[27] =  0.121172630956473600
  h[28] =  0.125000000000000000
  h[29] =  0.121172630956473600
  h[30] =  0.110190619715552020
  h[31] =  0.093467158987853752
  h[32] =  0.073085100295987429
  h[33] =  0.051446646637548922
  h[34] =  0.030886074843207982
  h[35] =  0.013320213346932732
  h[36] =  0.000000000000000003
  h[37] = -0.008597980852561133
  h[38] = -0.012732395447351625
  h[39] = -0.013233640850709147
  h[40] = -0.011262302509533587
  h[41] = -0.008047030491452372
  h[42] = -0.004656639758671657
  h[43] = -0.001846802699809452
  h[44] = -0.000000000000000001
  h[45] =  0.000845717332526101
  h[46] =  0.000902523967266898
  h[47] =  0.000507299772757014
  h[48] =  0.000000000000000000
  h[49] = -0.000366391065912952
  h[50] = -0.000469637666945299
  h[51] = -0.000315486131333351
  h[52] = -0.000000000000000000
  h[53] =  0.000344618685610375
  h[54] =  0.000601710556160302
  h[55] =  0.000704968381467267
  h[56] =  0.000649748221703861
