Specifications

Frequency Response

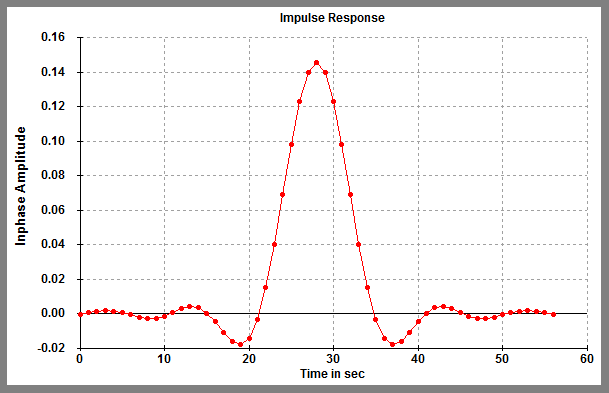

Impulse Response

Design Parameters

Fs = 1.000000 Hz
Number of taps = 57

Coefficients

  h[0] = -0.000268791530812991
  h[1] =  0.000619304325211109
  h[2] =  0.001456550381223089
  h[3] =  0.001891332651886123
  h[4] =  0.001672918494328177
  h[5] =  0.000767903415042683
  h[6] = -0.000588296437250878
  h[7] = -0.001935493901290288
  h[8] = -0.002728370453003920
  h[9] = -0.002536557719148195
  h[10] = -0.001241959145307405
  h[11] =  0.000839999232476305
  h[12] =  0.002974674055023348
  h[13] =  0.004181178904892751
  h[14] =  0.003537336640113211
  h[15] =  0.000541331432356071
  h[16] = -0.004576631012864483
  h[17] = -0.010701357824254930
  h[18] = -0.015915494309189534
  h[19] = -0.017835892126135816
  h[20] = -0.014149219690028738
  h[21] = -0.003228049445156527
  h[22] =  0.015328458773823926
  h[23] =  0.040381720037825523
  h[24] =  0.069274927342365039
  h[25] =  0.098215467408956952
  h[26] =  0.122953955385433220
  h[27] =  0.139615460420055600
  h[28] =  0.145492965855137190
  h[29] =  0.139615460420055600
  h[30] =  0.122953955385433220
  h[31] =  0.098215467408956952
  h[32] =  0.069274927342365039
  h[33] =  0.040381720037825523
  h[34] =  0.015328458773823926
  h[35] = -0.003228049445156527
  h[36] = -0.014149219690028738
  h[37] = -0.017835892126135816
  h[38] = -0.015915494309189534
  h[39] = -0.010701357824254930
  h[40] = -0.004576631012864483
  h[41] =  0.000541331432356071
  h[42] =  0.003537336640113211
  h[43] =  0.004181178904892751
  h[44] =  0.002974674055023348
  h[45] =  0.000839999232476305
  h[46] = -0.001241959145307405
  h[47] = -0.002536557719148195
  h[48] = -0.002728370453003920
  h[49] = -0.001935493901290288
  h[50] = -0.000588296437250878
  h[51] =  0.000767903415042683
  h[52] =  0.001672918494328177
  h[53] =  0.001891332651886123
  h[54] =  0.001456550381223089
  h[55] =  0.000619304325211109
  h[56] = -0.000268791530812991
